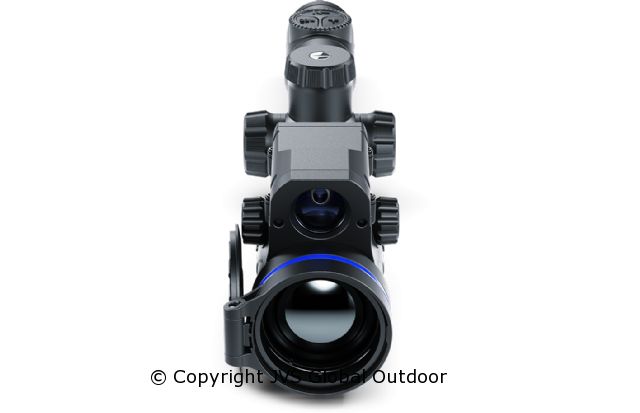

Pulsar Thermion-2 XQ50 LRF Pro
The first thermal imaging riflescope with classic design and built-in laser rangefinder
The laser rangefinder is seamlessly integrated into a slim design riflescope. The rangefinder is compact, the receiver and emitter are within clearance limits of a single optical channel. The measuring range is 800 metres – the Thermion 2 LRF provides the hunter with an accurate sense of distance at the hunting site helping to take a precise shot.
High Definition Thermal Sensor
Sharp, richly contrasted thermal imaging for enhanced identification of animals, their extremities and even the smallest details, i.e. branches, leaves, grass and terrain.
Unprecedented Thermal Sensor Sensitivity
Thermal imaging sensor with NETD <25mK ensures perfect detail recognition even in the hardest weather conditions when thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imaging.
Fast Aperture Lens F50/1.0
The characteristics of thermal imaging optics have a decisive influence on a thermal imager’s ability to capture even the lowest radiation levels. Ultimate detection efficiency is achieved with the fast lens of the Thermion 2 LRF (F50/1.0) thermal imager in combination with the highly sensitive thermal sensor. The Thermion 2 LRF gives users the best quality, most detailed & high-contrast, informative imagery every time, even during rain or fog, when the temperature contrast of the observed scene is minimal.
Long detection range up to 2300 m
A powerful long-distance F50/1.0 objective lens combined with a highly-sensitive thermal imaging sensors provides exceptional detection capabilities. A standard 1.8m tall object can be detected on a distances of 1800 ‒ 2300 m away in complete darkness.
Up to 10 hours of battery life on a single charge
The Thermion 2 LRF is powered with two rechargeable batteries: one built-in with a capacity of 4.9 Ah, the other replaceable with a capacity of 2 Ah. A single charge guarantees up to 10 hours of battery life, which covers the time of active use of the scope for a hunt. The embossment on the body of the replaceable battery for accurate determination of the correct position makes it possible to quickly and confidently replace a flat battery with a new one in complete darkness by touch.
High-precision ambidextrous lens focusing
Objective lens with internal focusing mechanism gives a clear and sharp image at any range. Ergonomic focusing wheels are located on the right and left sides, making focusing easy either left- or right-handed.
Clear on Target!
Variable magnification
The base magnification of Thermion 2 LRF riflescopes increases by 4x to 8x depending on model. The zoom changes either gradually by 2x steps or continuously to set the ideal ratio of magnification and visible field of view for specific situations.
High-precision aiming in the "Picture-in-picture" mode
The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.
5 individual shooting profiles / 50 zeroing distances
Zeroing settings are saved in a shooting profile. The Thermion 2 LRF memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.
A selection of 10 reticle shapes in 9 color modes
A reticle is electronically displayed in the same plane as the target. The Thermion 2 LRF memory contains ten reticle configurations and functions (direct shot type, ballistic, scalable and regular), all available in nine colors.
Rugged and Reliable
Mounting on standard 30 mm rings
The Thermion 2 LRF offers visual aesthetics on any hunting weapon. From the outside the riflescope resembles a classic day sight in a 30mm housing. This form factor provides flexibility for mounting the scope on hunting weapons using proven ring solutions.
Instant Start-up
Just 3 seconds from the moment you press the power button the Thermion 2 LRF is completely ready for work.
High caliber recoil resistance: 12 gauge, 9.3x64, .375H&H
Thermion 2 LRF thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibers of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.
Completely waterproof IPX7
With an IPX7 waterproof rating, the Thermion 2 LRF riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion in water to a depth of 1 meter.
Operating temperature range: -25 to +50 °C
Thermion 2 LRF riflescopes are designed to operate in a wide range of temperatures -25 to +50 °C. The frost-resistant AMOLED display has a standout quick response time and ensures a sharp image when observed in motion.
Image. Quality
High contrast HD AMOLED display
1024x768 HD AMOLED display has enhanced color rendering, power saving, a high contrast image and quick-response, providing clear and smooth images for on-the-move observation or in cold conditions.
A selection of 8 color palettes
A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are most suitable for long observation in the night.
Wide-angle eyepiece for comfortable observation
The wide-angle eyepiece (29.5°) and wide viewing angle of the HD quality AMOLED display provide comfortable image perception and the absence of the keyhole effect with safe removal of the exit pupil of 50mm. Observation with the Thermion 2 LRF does not strain your eyes and enables the hunter to fully concentrate on the hunting process.
Photo and video recording
Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording a video. 16 GB of internal memory will give the ability to record many hours of video and tens of thousands of photos.
Stream Vision 2. WiFi integration with iOS and Android devices
The built-in WiFi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless update of the device software, transmission of images to the screen of a mobile device in real time, remote control of digital functions of the device and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.
Specifications
Main
Sensor
384x288 @ 17 µm (NETD <25 mK)
Objective lens
F50 F/1.0
Magnification, x
3-12
Field of view (HxV), degrees / m@100m
7.5/13.1
Detection range, m
1800
Sensor
Type
uncooled
Resolution, pixels
384x288
Pixel pitch, µm
17
NETD, mK
< 25
Frame rate, Hz
50
Optics
Objective lens
F50 F/1.0
Magnification, x
3-12
Field of view (HxV), degrees / m @ 100 m
7.5/13.1
Eye relief, mm
50
Display
Type
AMOLED
Resolution, pixels
1024х768
Range Performance
Detection range, m
1800
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
1
Wavelength, nm
905
Max. measuring range, m
800
Measurement accuracy, m
± 1
Reticle
Click value, H/V, mm at 100 m
13 – 3х 6.5 – 6х 3.25 – 12х
Click range, H/V, mm at 100 m
2600/2600
Number of preloaded reticles
10
Video Recorder
Video / photo resolution, pixel
1024x768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
16
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
IEEE 802.11 b/g/n/ac
Frequency, GHz
2.4 / 5 GHz
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPX7
Operating temperature range, °С
-25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules
6000
Shock resistance on the smooth-bore rifles, caliber
12
Compatible mounts
Standard 30 mm rings
Remote control
-
Supported Application
Stream Vision 2
Power Supply
Output voltage, V
3.7V
Battery type
Li-Ion Battery Pack АPS2
Capacity, mAh
4900
Operating time on battery pack (at t=22°C), h *
10
External power supply, V
5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body material
Aluminum alloy
Dimensions, mm
420x78.5x94.5
Weight, kg
0.97
Trade Data
SKU (Model #)
76555
PACKUNGSINHALT
Wärmebild-Zielfernrohr
Abnehmbare Augenmuschel aus Gummi
АPS2 Akkupack
APS-Ladegerät
Netzteil
USB-Typ-C-Kabel mit USB-Typ-A-Adapter
Tragetasche
Linsenreinigungstuch
Schnelles Benutzerhandbuch
Garantiekarte
APS3-Batterieabdeckung
